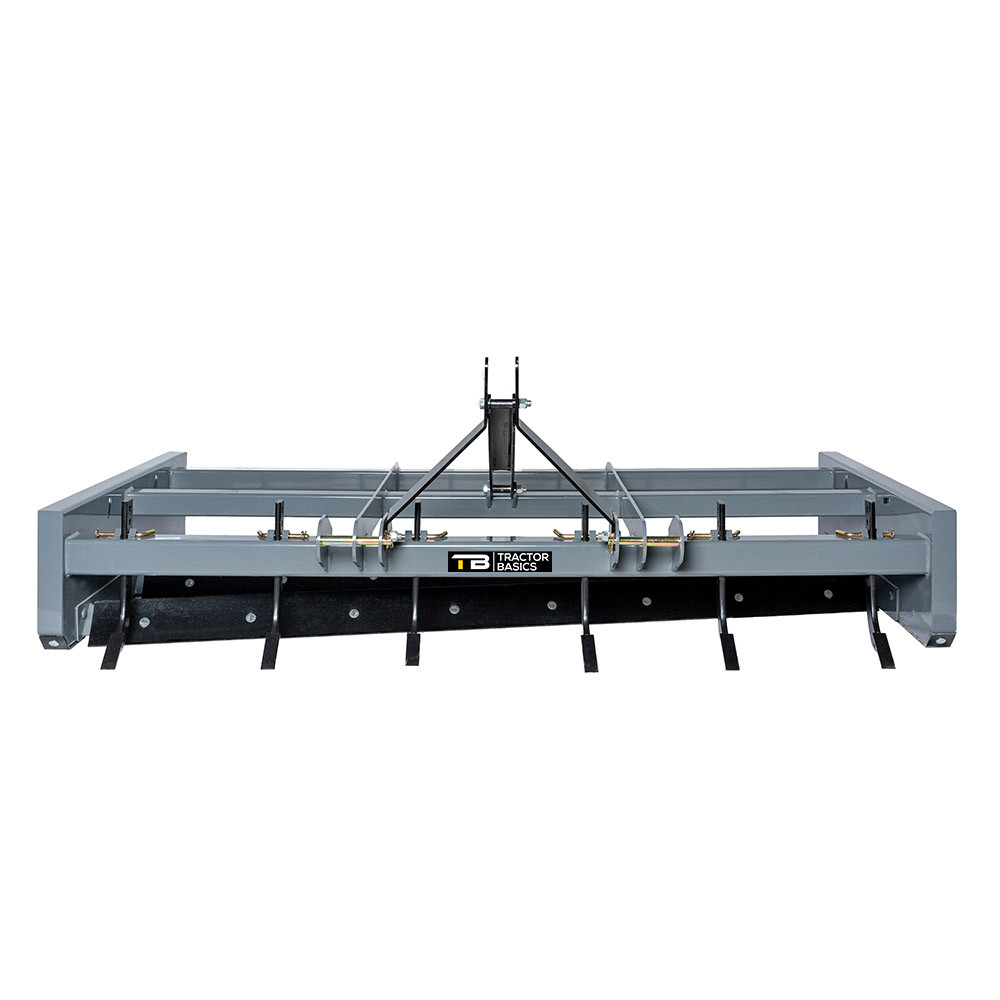

Tractor Basics 3700 Series Dual-Edge Graders 3-Point Attachment
Description
Tractor Basics 3700 Series Heavy Duty Box Blades / Dual-Edge Graders are designed to work with 40 to 80 HP tractors and are used to maintain gravel driveways, level a garden plot, or smooth dirt areas including horse arenas or barn floors. This attachment accommodates a category I quick hitch, category II 3-Point, and category II quick hitch if applicable and is designed with an adjustable cutting depth making the shanks optional. The 3700 Dual-edge graders features replaceable skid shoes, reversible blades, adjustable blade height and shanks.
Features
- 84″ or 96″ Width
- Adjustable Cutting Depth
- Replaceable Skid Shoes
- Reversible Blades
- Adjustable Blade Height
- Adjustable Shanks
- Category I, II 3-Point, or II Quick Hitch Compatibility
What’s Included?
- 3700 Dual Edge Graders
- 3 Point Hitch
Additional information
| Horsepower | 40-80 | 50-80 |
|---|---|---|
| Width ( ) | 84 | 96 |
| Overall Width | 89 5/8 | 101 5/8 |
| Weight | 700 Lbs. | 740 Lbs. |
| # Scarifer Shanks | 6 | 6 |
| Length | 58 1/2 | 58 1/2 |
| Height | 33 3/4 | 33 3/4 |
| A-Frame Material | 3/8 | 3/8 |
| Side Panel Thickness | 3/16 | 3/16 |
| Side Panel Height | 16 | 16 |
| Side Panel Length | 52 | 52 |
| Rear Beam Construction | Two beams 3 x 3 x 3/16 spaced 21 1/8 apart | Two beams 3 x 3 x 3/16 spaced 21 1/8 apart |
| Shank Adjustment | At grade level 1 1/2 and 3 below grade level | At grade level 1 1/2 and 3 below grade level |
| Lower Draft Link | Clevis Type | Clevis Type |
| Hitch Type | CAT I II | CAT I II |
