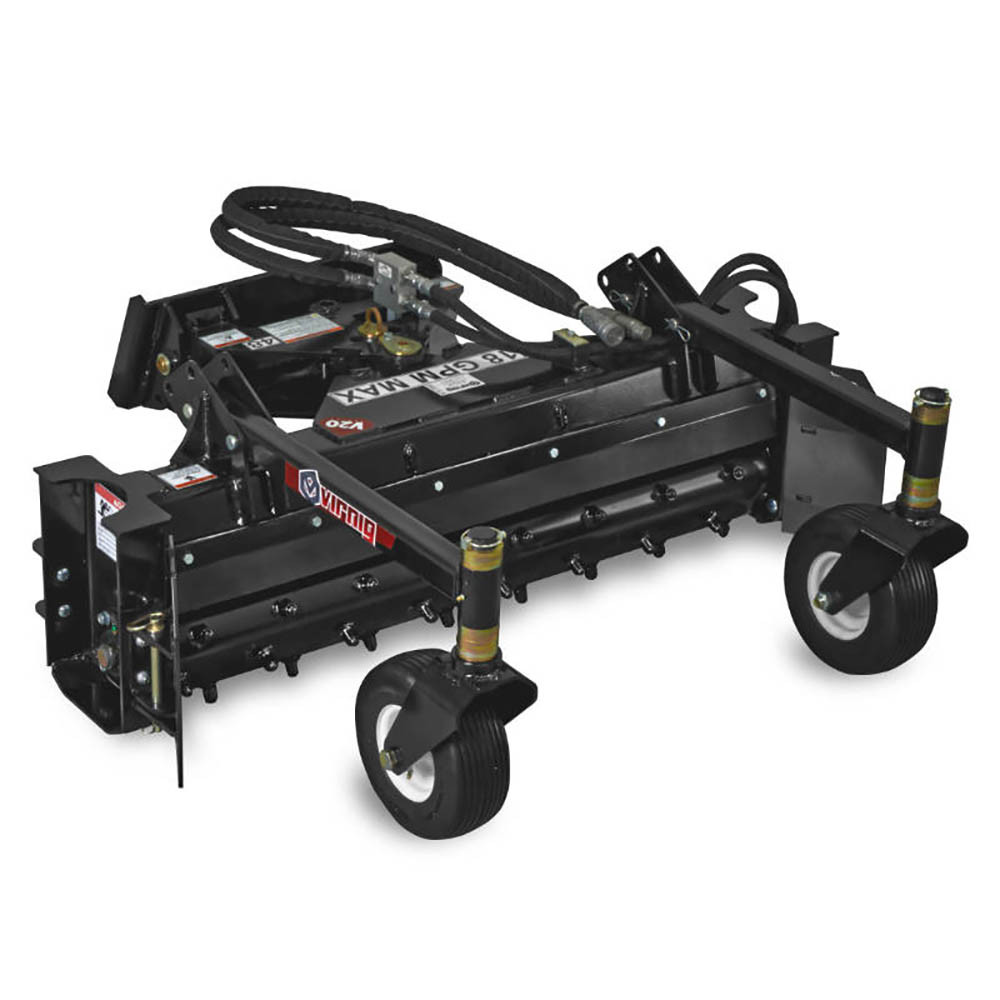

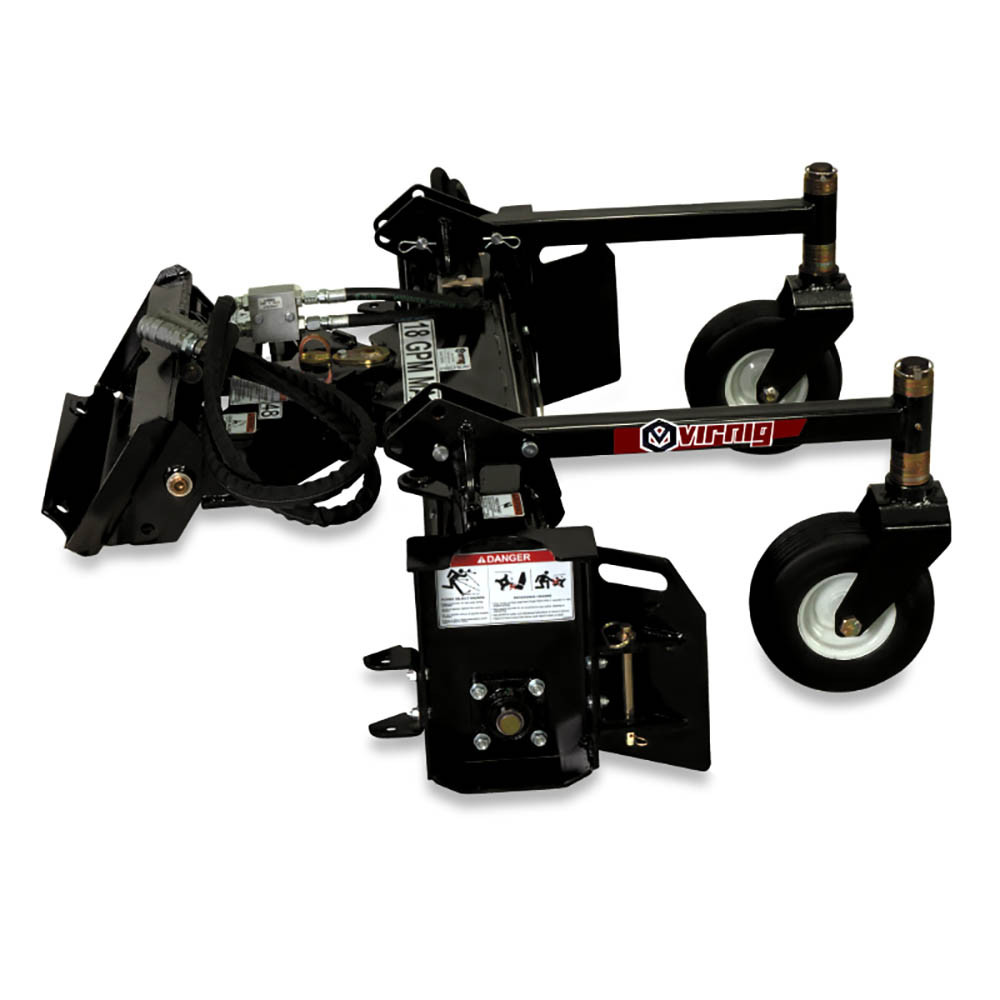

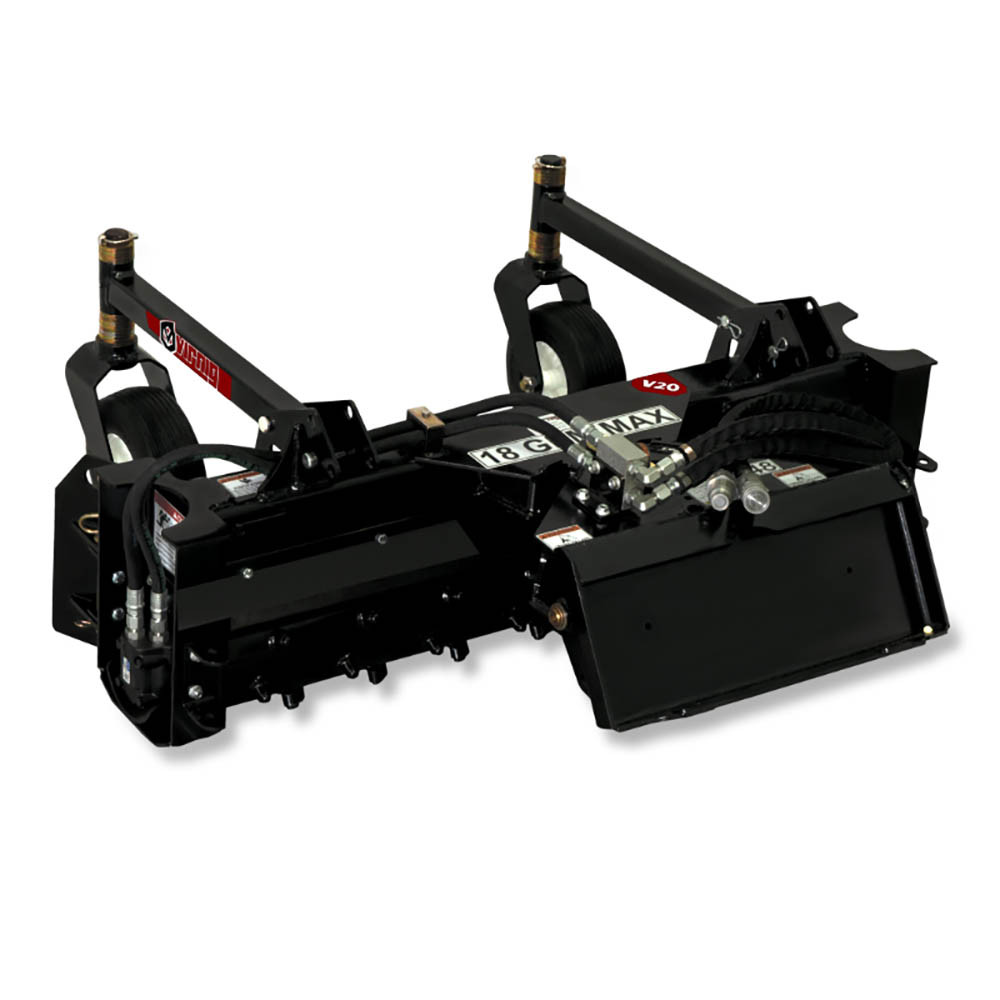

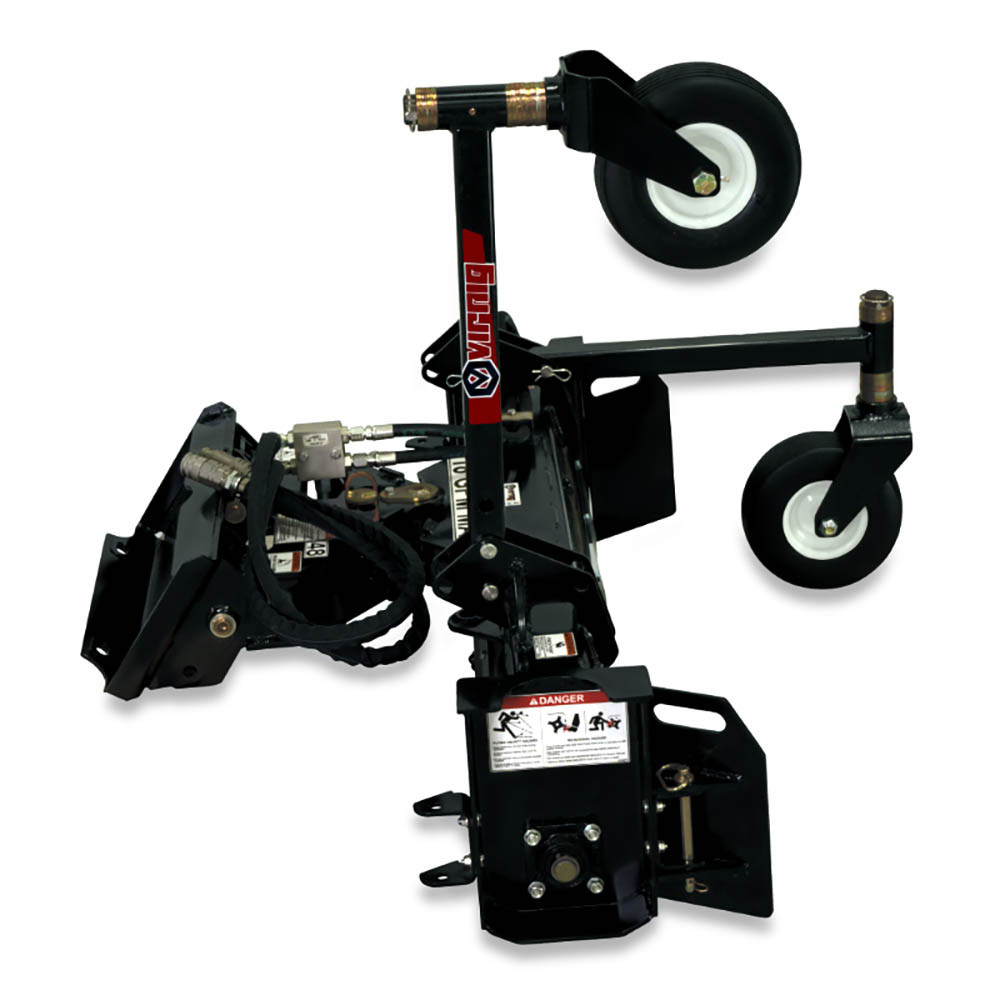

Virnig V20 Mini Skid Steer Power Rake
Description
This mini skid steer power rake from Virnig Mfg. is built for efficiency, power and control. The floating design leaves a smooth looking finish while the full-down pressure and bi-directional capabilities allow you to grade any surface effectively. The rake itself is fitted with carbide tip teeth and can be angled 25 degrees left or right. The V20 rake is designed for longevity with flat-free urethane tires, reversible and removeable end plates and a motor guard.
The hydraulic angle option is a 1 cylinder design that uses an electric control valve allowing the operator to angle the rake from the platform or cab. This attachment is compatible with Mini Universal, Bobcat and ASV mounts.
Electric Angle Options:
For mini skid steers which require electricity to control the angle, there are four options:
- 8 Pin Control – works with ASV RT25 and 40.
- 14 Pin Control – some Bobcat models have an aftermarket 14 pin connector installed.
- 12 Volt Electric Control (with power source) – works on all mini brands (except Bobcat)
- 12 Volt Electric Control – pulls power from your loader’s battery.
NOTE: Bobcat mini skid steers have the following two electric options:
- 12 Volt Electric Control – pulls power from the battery.
- 14 pin Control – works with a pre-installed 14 pin connection
Hydraulic Angle Option is only available for Vermeer skid steers and do not require an electric option.
Features
- 10-18 GPM Eaton Direct Drive Motor
- Hydraulic angle option allows operator to angle the rake from the platform or cab.
- 515lb load capacity
- Full-down pressure capability for more effective grading
- Floating deck design for better mobility
- Carbide tip teeth
- Flat-free Urethane tires
- Guarded motor for protection from debris
What’s Included?
- V20 Mini Skid Steer Power Rake
- Mini Skid Steer Mount
- Eaton Hoses
- Flat Faced Couplers
- Owner’s Manual
Additional information
| Power Rakes | 48 Rake | 60 Rake |
|---|---|---|
| Weight (Lbs.) | 520 | 565 |
| Float Angle (Deg.) | 22 | 22 |
| Max. Angle (Deg.) | 25 | 25 |
| Width ( ) | 48 | 60 |
| Height ( ) | 22.2 | 22.2 |
| Depth ( ) | 52.6 | 52.6 |
| Flow Range (GPM) | 10-18 | 10-18 |
| Drum Diameter ( ) | 7 | 7 |
| Load Capacity (lbs.) | 515 | 515 |
| Number of teeth | 62 | 78 |
| load capacity | 515lb | |
| Brand | Virnig |
