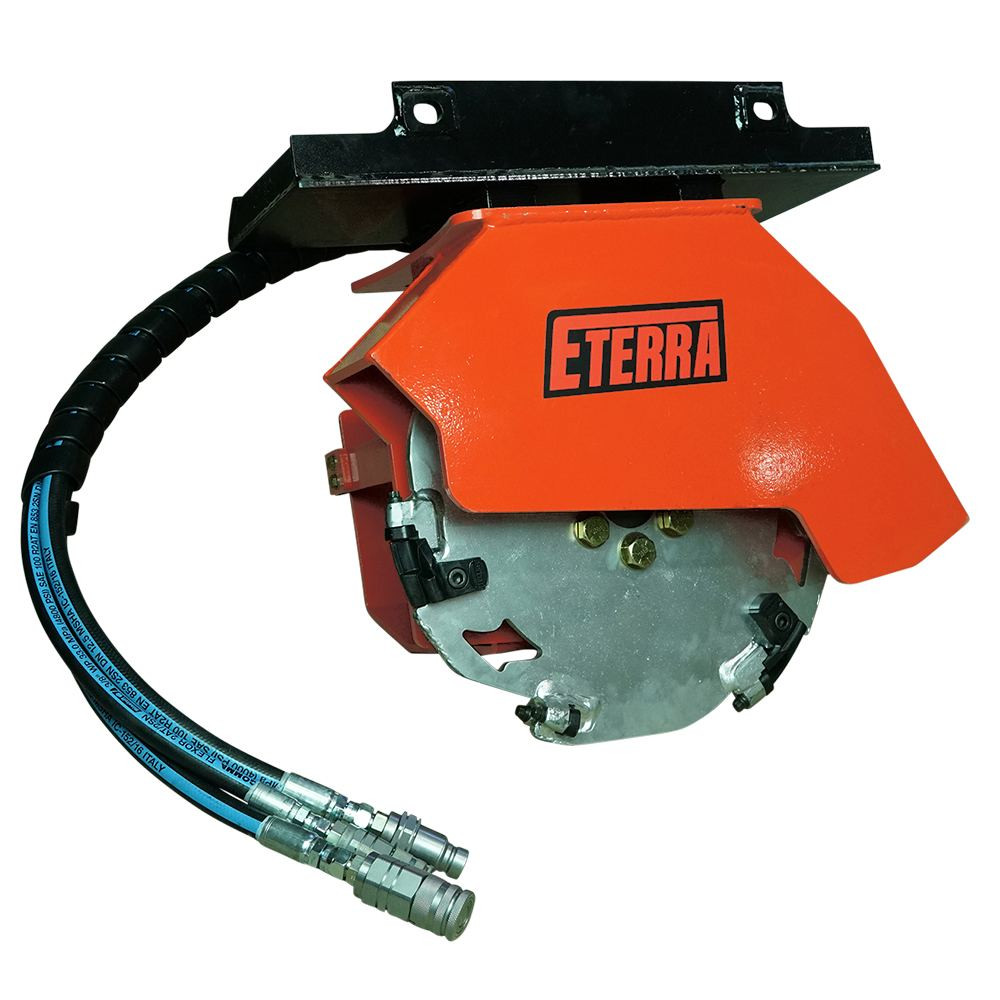

Eterra Vortex Mini Skid Steer Stump Grinder

Description

The Eterra Mini Skid Steer Vortex Stump Grinder gives operators the ability to remove stumps efficiently in tight spaces with high torque and minimal maintenance. The radial piston motor converts 95% of hydraulic flow into horsepower, ensuring mini skid steers get maximum cutting power despite their lower hydraulic flow. The direct drive system with an oil bath enclosed hub eliminates external couplers and the need for greasing, reducing maintenance and increasing reliability. Anti-cavitation relief valves remove the need for a check valve, eliminating failure points and keeping the system running smoothly. A wraparound motor guard protects the motor and hoses from damage during operation.

Equipped with a 20″ diameter, 1/2″ thick cutting wheel, the Vortex is designed for heavy-duty stump removal. The high-strength alloy steel wheel features replaceable rock guards to prevent tooth chipping in rocky conditions and flippable three-sided teeth, extending time between replacements. The Grade 50 steel housing is built to withstand tough environments while its extended exit side design helps control chip spray, directing debris downward for a cleaner work area. Whether you’re clearing land, maintaining properties, or tackling stump removal in confined areas, the Eterra Mini Skid Steer Vortex Stump Grinder delivers power, efficiency, and long-lasting performance in a compact package.

Other tooth styles available, consist of Sand and Clay, Rocky and Rough, or Standard grinding conditions.

NOTE: A case drain is required (case drains are a fairly simple installation which can be done at a local hydraulics shop or on your own if you’re mechanically inclined).

Features

  • Mounting Options for Nearly All Mini Skid Steers (Mini Universal, Bobcat MT, Mini ASV)
  • 12-20 GPM Hydraulic Flow Requirement
  • Case Drain is Required
  • Wheel: 20″ Diameter, 1/2″ Thick, High Strength Alloy Steel

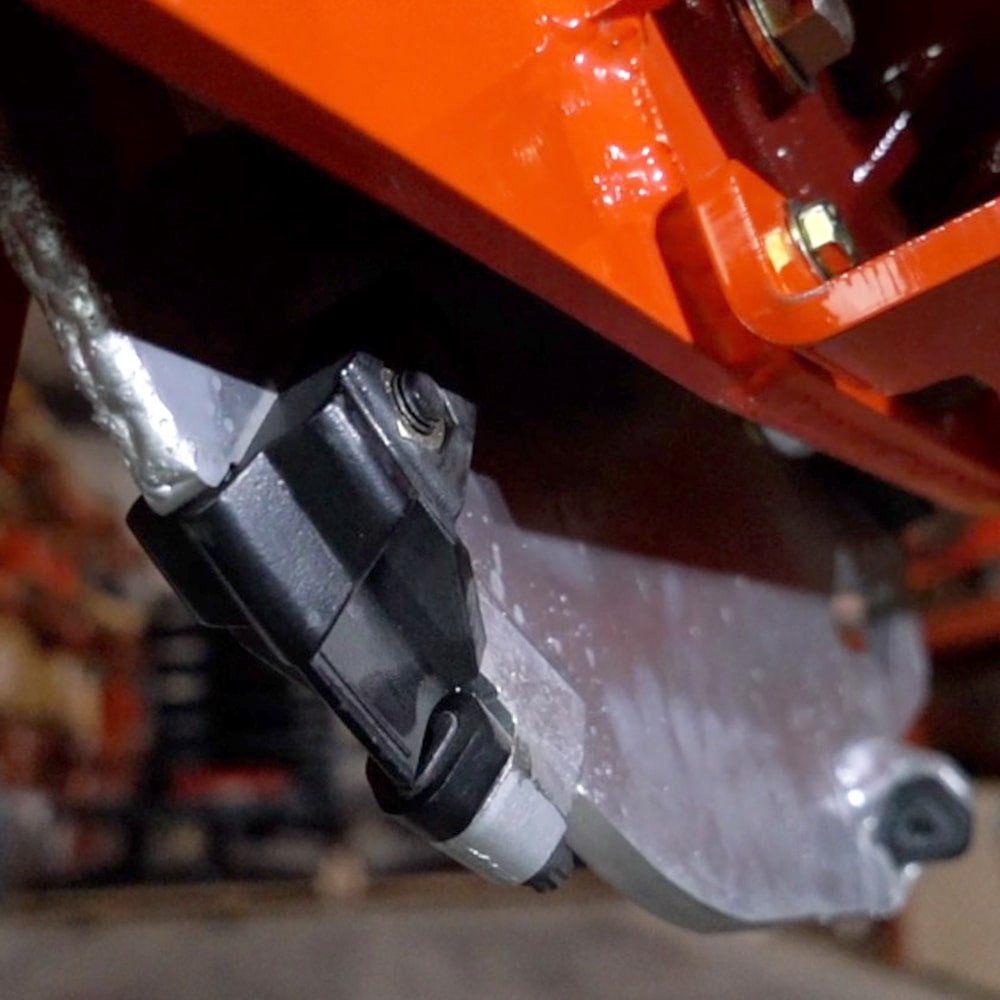

  • Rock Guards to Protect Teeth

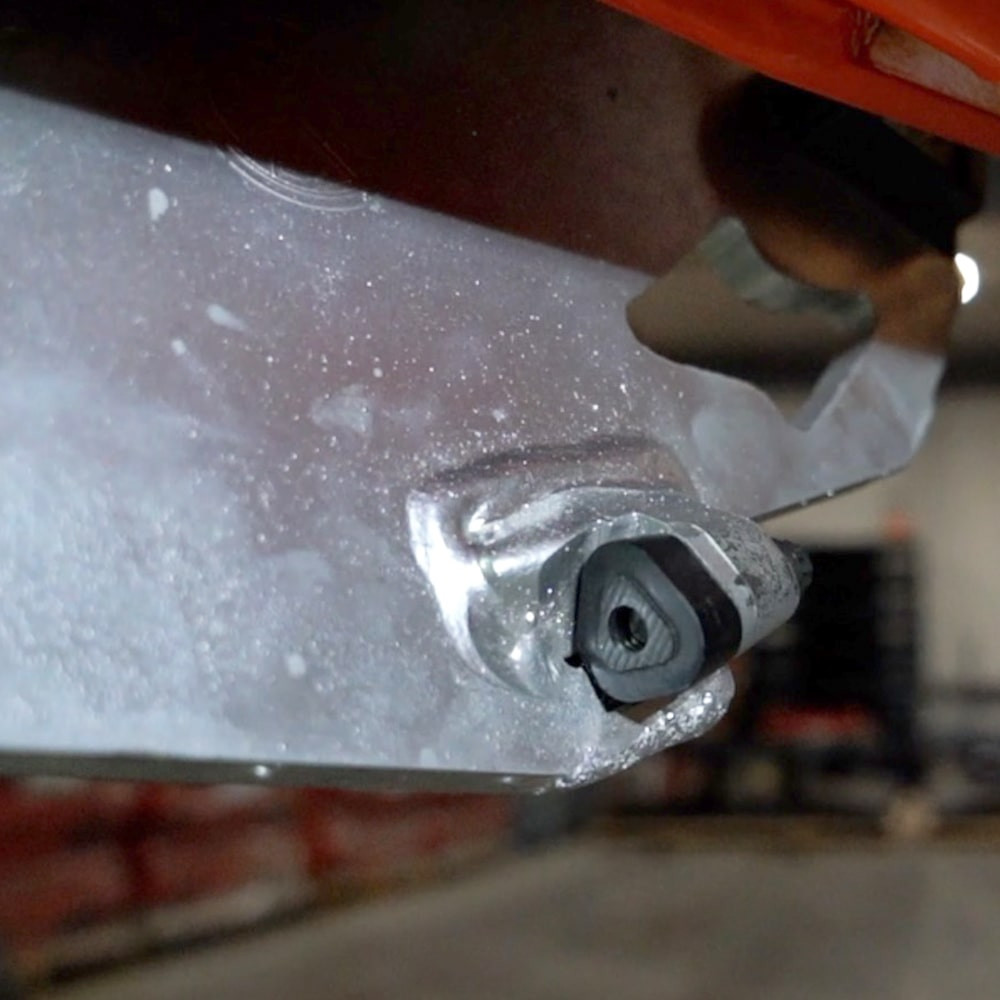

  • Three-Sided Flip-able Teeth

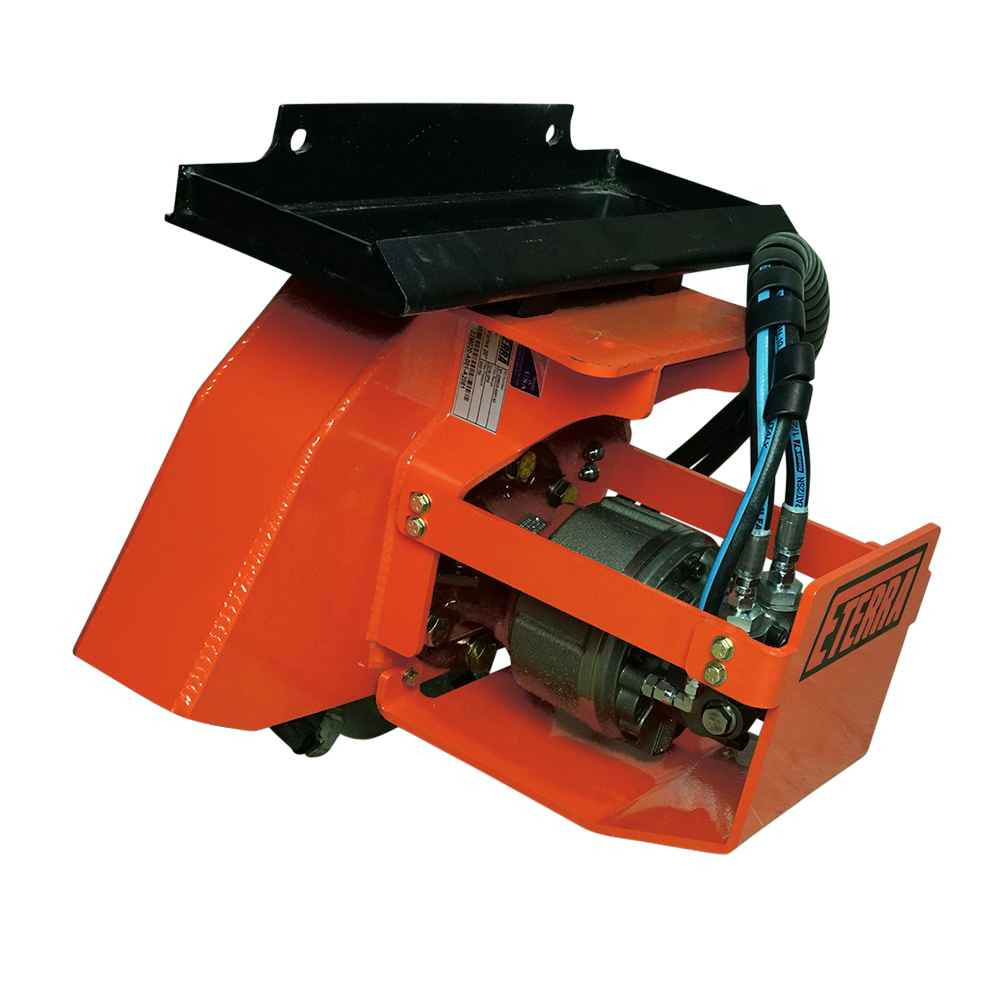

  • Radial Piston Motor
  • Anti-Cavitation Aspect
  • Direct Drive System (oil bath enclosed)
  • Grade 50 Steel Housing
  • Minimal Chip Spray design

What’s included?

  • Vortex Mini Skid Steer Stump Grinder
  • Mini Skid Steer Mounting Plate (see options)

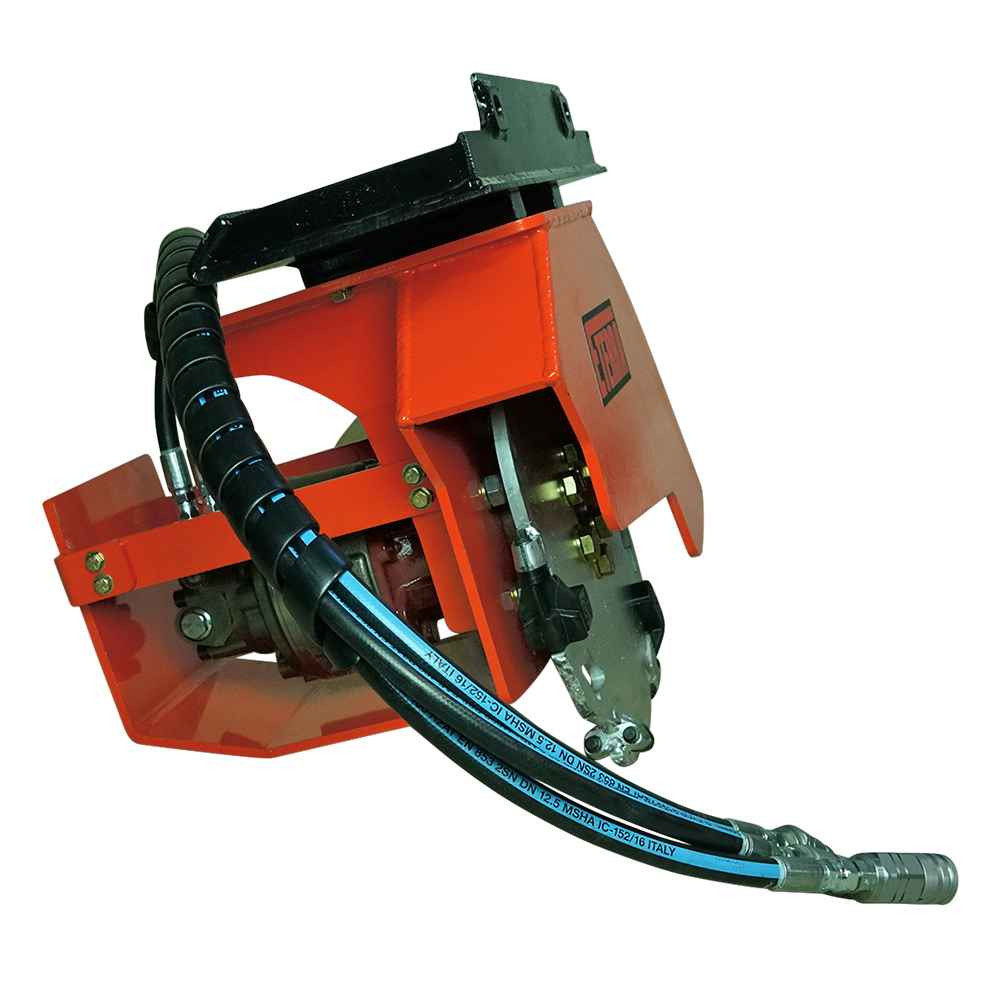

  • Hydraulic Hoses Including Case Drain Line
  • Flat Face Couplers
  • Owner’s manual

Additional information

Model V20
Housing Grade 50 Steel Housing
Weight (Lbs.) 340
Grinding Depth ( ) 9
# of Teeth Three-Sided Flippable Teeth
Tooth Type 6
Required Flow Rate (GPM) 12-20
Wheel Diameter ( ) 20
Wheel Speed (RPM) 350-600
Max Pressure (PSI) 5500
Drive System Direct Drive System
Motor Radial Piston Motor
Brand Eterra
